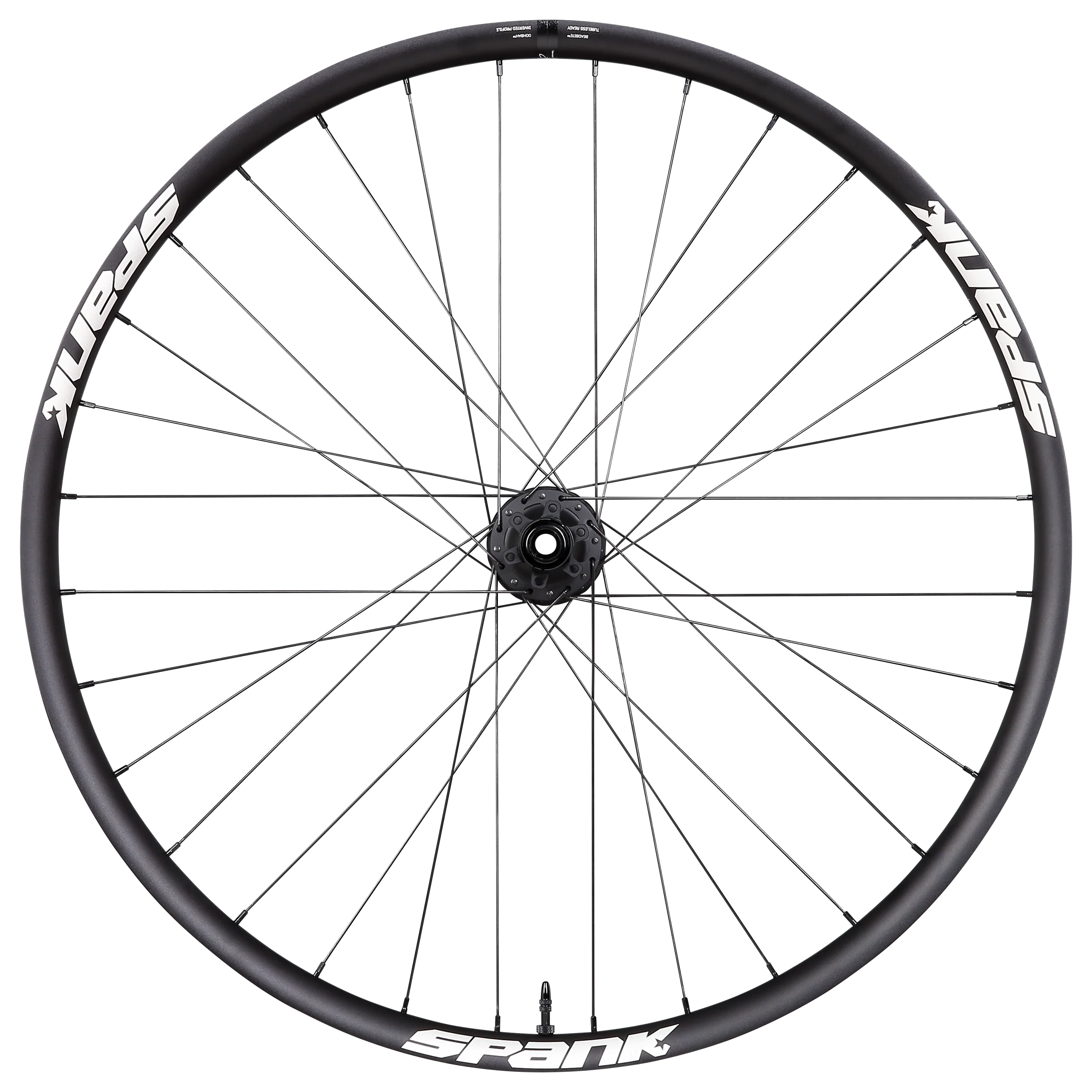

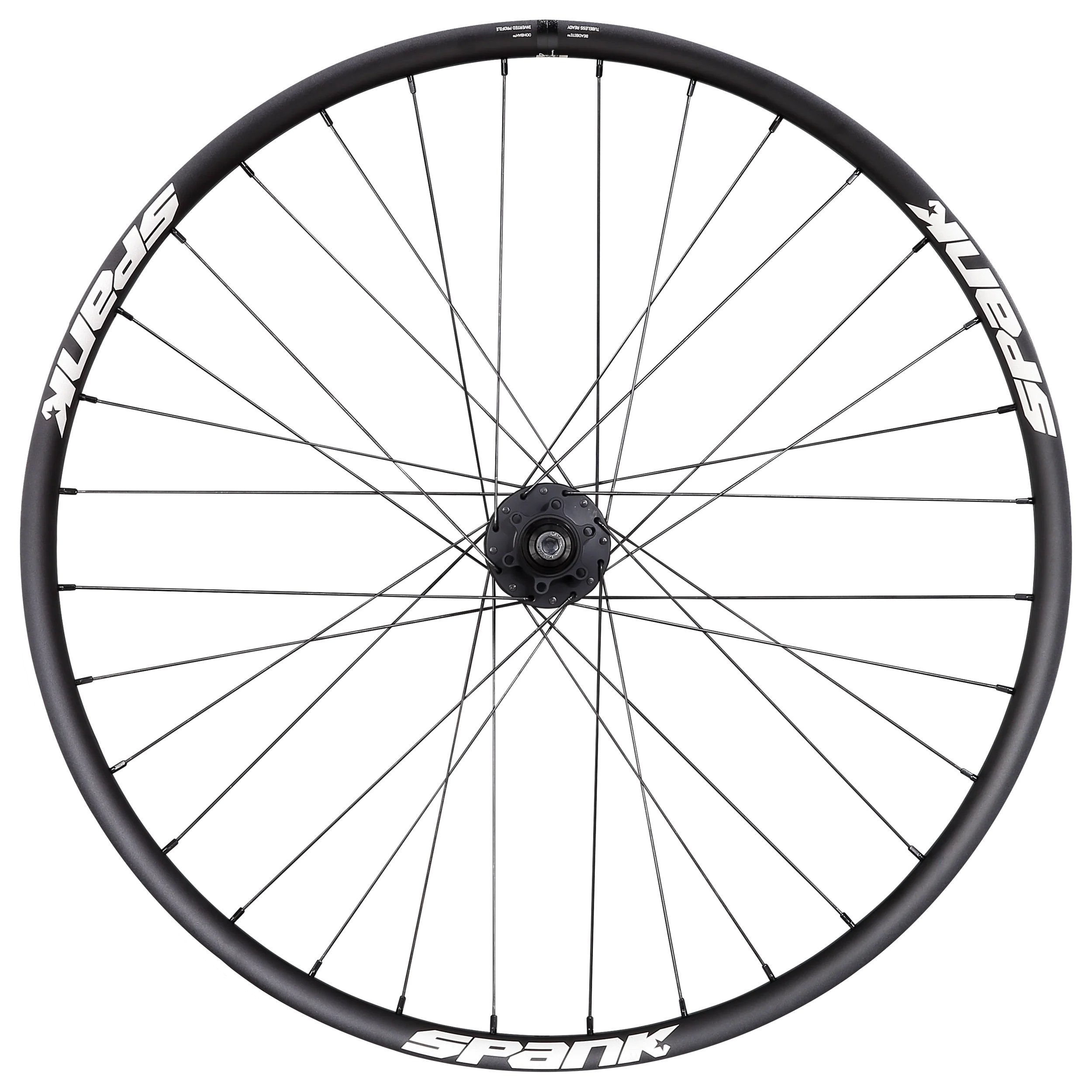

SPANK SPIKE 33 REAR Wheel

A high-performance alloy rim designed for freeride, enduro and downhill race use
Tubeless ready with anti-burp rim hooks to prevent the loss of pressure and keep tires firmly in place
32 holes with an inner width of 28mm and outer width of 33mm to optimize tire spread and enhance traction
The corrugated rim center adds exceptional strength, making it more rigid and allowing the rim to be wider without adding material
Shotpeen finish to increase fatigue life and make it more durable

FRONT WHEELS TO PAIR WITH:


SPIKE RACE 33

CLASSIFICATION & INTENDED USE: ASTM 5

ALL MOUNTAIN	TRAIL	ENDURO	FREERIDE
✔	✔	-	✔
DOWNHILL	GRAVEL	XC	E-BIKE
✔	-	-	*

* Recommended for E-Bike when adapting with SPANK HEX DRIVE steel freehub (available as seperate purchase in HG, XD and Microspline. (See Hex Drive Service Parts)

HUMAN FACTOR

SPANK's recommendations for what body type and ride style this product is suited to.

BODY WEIGHT & RIDE STYLE:	Heavy Rider	Medium Rider	Light Rider
Heavy Impact	✔	✔	✔
Medium Impact	✔	✔	✔
Light impact	✔	✔	✔

RIM SPECIFICATIONS

HOLE COUNT:	32
INNER WIDTH (mm):	28
OUTER WIDTH (mm):	33
PROFILE HEIGHT:	22
TYRE FIT	1.9" to 2.5"

BUILD SPECIFICATIONS

BUILD:	Handbuilt
HUB:	SPANK HEX J-TYPE
SPOKES:	J-Hook, tripple butted 2.2/1.8/2.0
NIPPLES:	Brass external
LACING:	3 cross lacing
VALVE:	F/V Presta
TUBELESS:	Tubeless taped & valved

HUB SPECIFICATIONS:

ENGAGEMENT:	HEX DRIVE 102T / 3.5° / 6 Pawl
HOLE COUNT:	32H J-Hook
DISC MOUNT:	6-bolt
MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy freehub body

VARIANT SPECS

(Available factory standard in XD and Shimano HG. Microspline freehubs available).

	HUB	HUB SPACING	BOOST	FREEHUB	HOLE COUNT	ADAPTER INCL.	WEIGHT	ERD	ETRTO	SPOKE LENGTH	SPOKE LENGTH
26"	HEX J TYPE	12x142	-	HG	32H	12x135	997g	529++	559x28	R-255	L-258
	HEX J TYPE	12x142	-	XD	32H	12x135	989g	529++	559x28	R-255	L-258
	HEX J TYPE	12x150	-	HG	32H	12x157	1008g	529++	559x28	R-255	L-258
	HEX J TYPE	12x150	-	XD	32H	12x157	1000g	529++	559x28	R-255	L-258
	S/S BOLT ON	10x135	-	11T	32H	-	1124g	529++	559x28	R-255	L-258

27.5"	HEX J TYPE	12x142	-	HG	32H	12x135	1038g	554++	584x28	R-266	L-269
	HEX J TYPE	12x142	-	XD	32H	12x135	1030g	554++	584x28	R-266	L-269
	HEX J TYPE	12x150	-	HG	32H	12x157	1049g	554++	584x28	R-266	L-269
	HEX J TYPE	12x150	-	XD	32H	12x157	1041g	554++	584x28	R-266	L-269
	HEX J TYPE	12x148	BOOST	HG	32H	-	1044g	554++	584x28	R-266	L-269
	HEX J TYPE	12x148	BOOST	XD	32H	-	1036g	554++	584x28	R-266	L-269

29"	HEX J TYPE	12x150	-	HG	32H	12x157	1086g	591++	622x28	R-285	L-288
	HEX J TYPE	12x150	-	XD	32H	12x157	1078g	591++	622x28	R-285	L-288
	HEX J TYPE	12x148	BOOST	HG	32H	-	1081g	591++	622x28	R-285	L-288
	HEX J TYPE	12x148	BOOST	XD	32H	-	1073g	591++	622x28	R-285	L-288

Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.

ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

Boost R148:	HEX Rear Hub QRx135/141 Adapter
R150/157:	N/A
R135/142:	HEX Rear Hub QRx135/141 Adapter
	HEX Rear Hub 10x135 Adapter

SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

HEX Rear HG/HGR Hub Replacement Bearing Kit

HEX Rear XD/XDR Hub Replacement Bearing Kit

HEX Boost Rear Hub Alloy Axle Shaft

HEX Rear Hub 135/142mm Alloy Axle Shaft

HEX Rear Hub 150/157mm Alloy Axle Shaft

HEX Rear Hub HG Alloy Anti-Bite Freehub

HEX Rear Hub XD Alloy Freehub

Wondering how strong our wheels are? See what happened when the GMBN crew tested them recently?

Select Size

Select Spacing

Select Freehub

From $379.99

SPANK SPIKE 33 REAR Wheel—

$379.99
