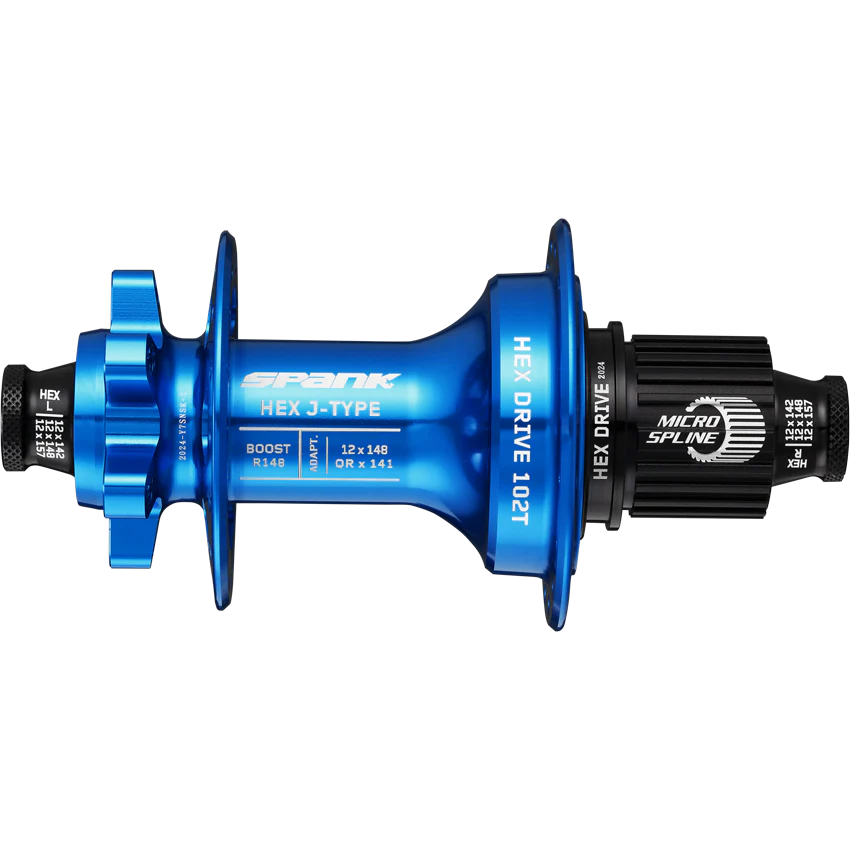

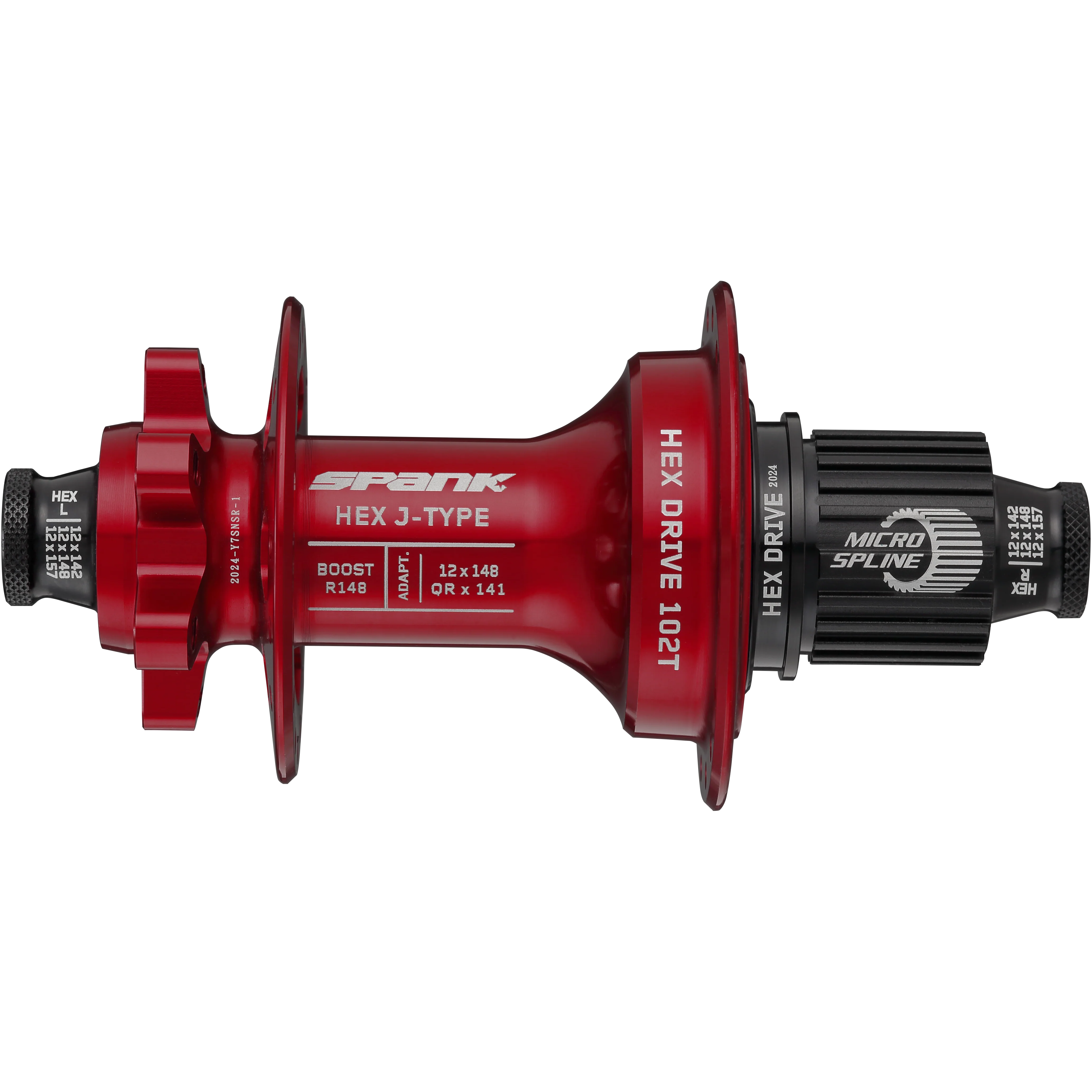

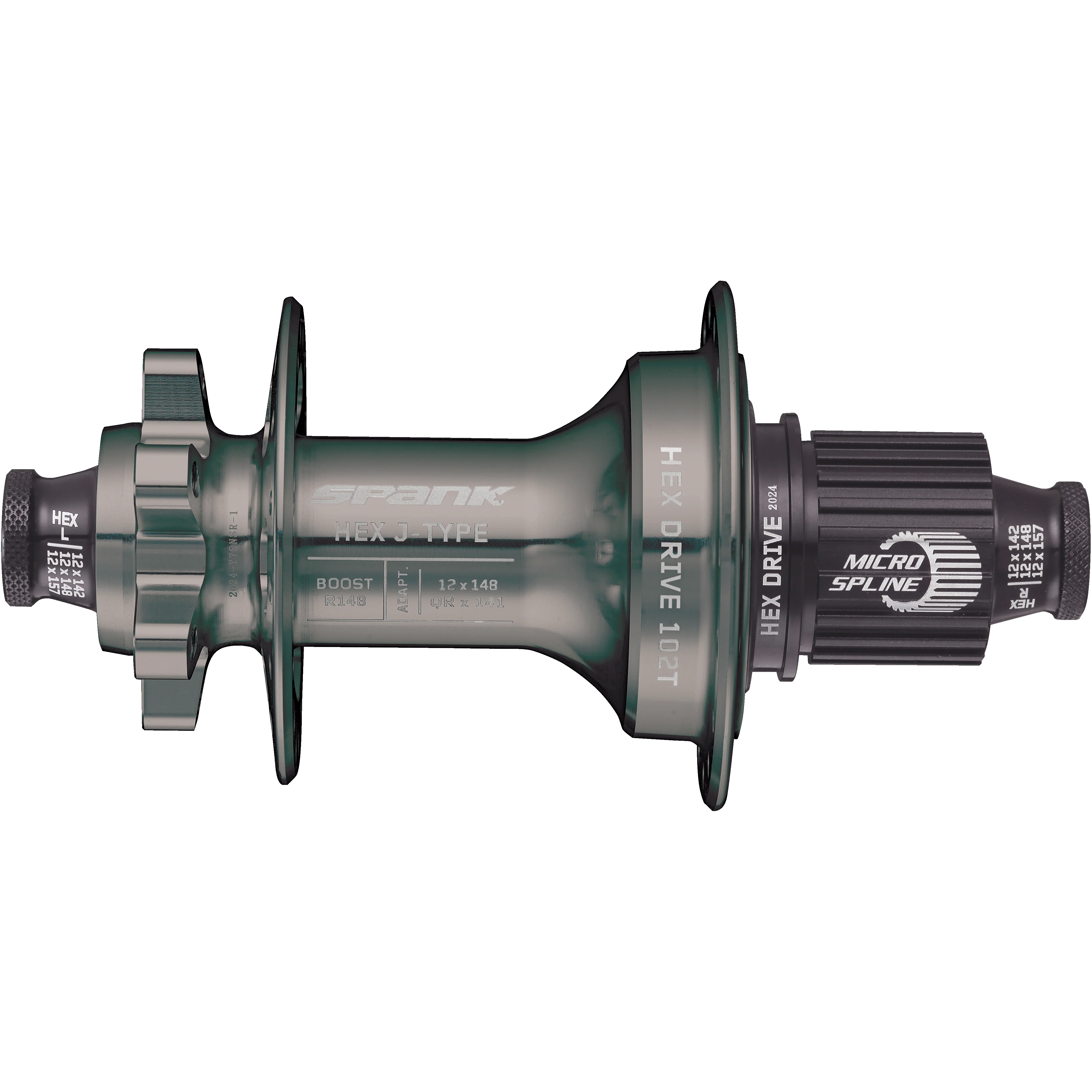

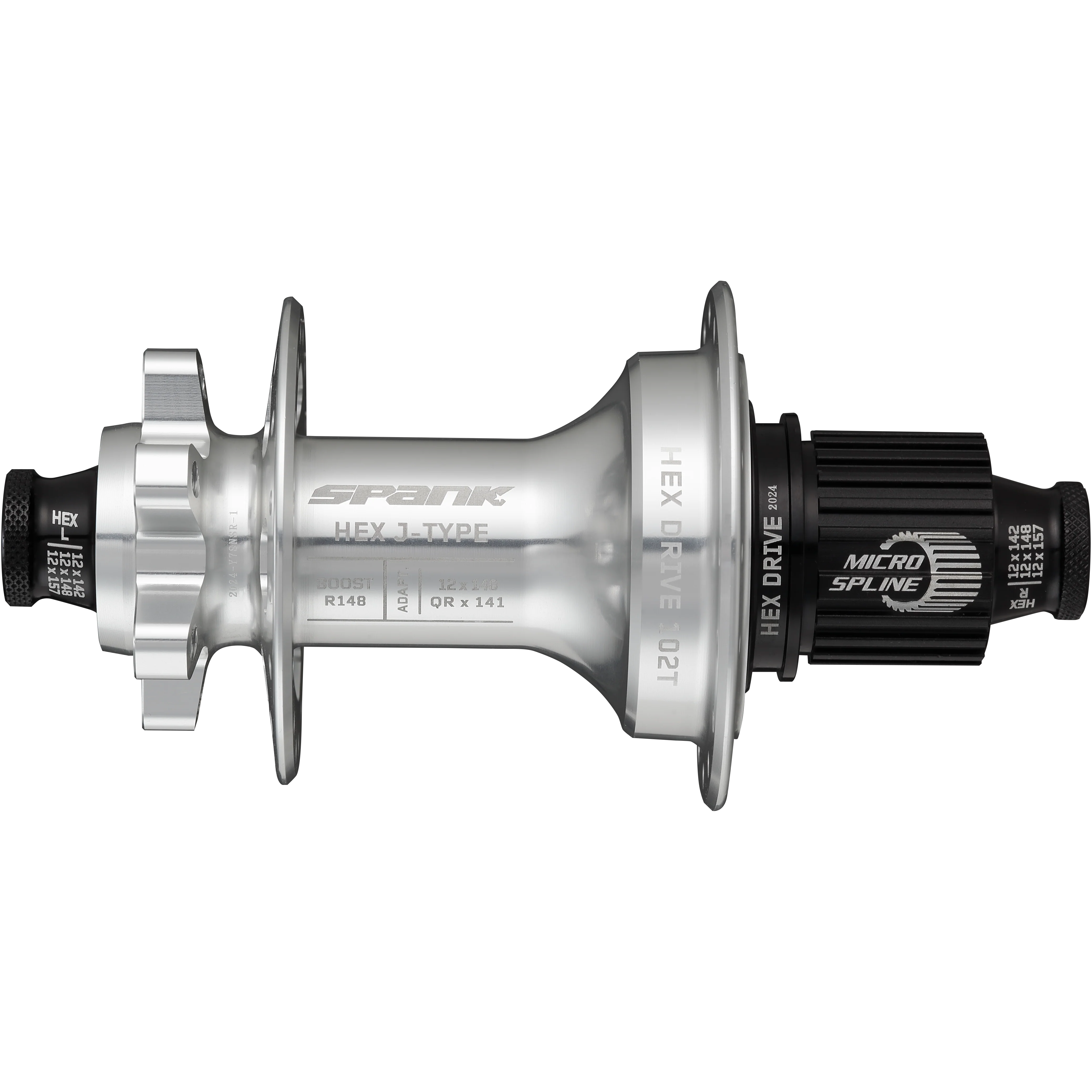

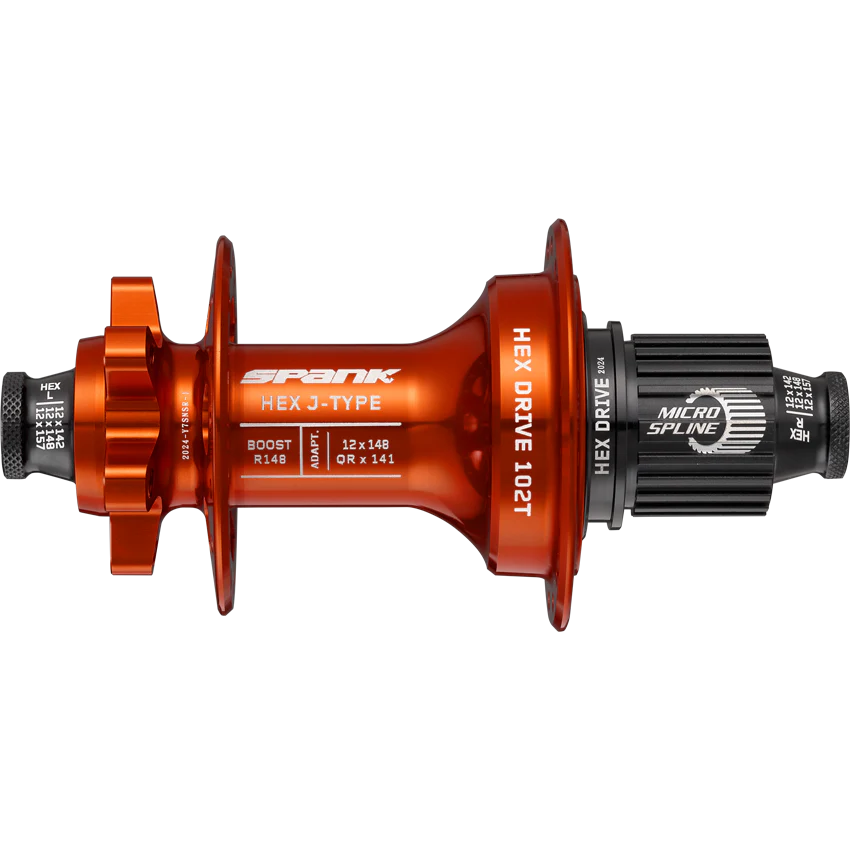

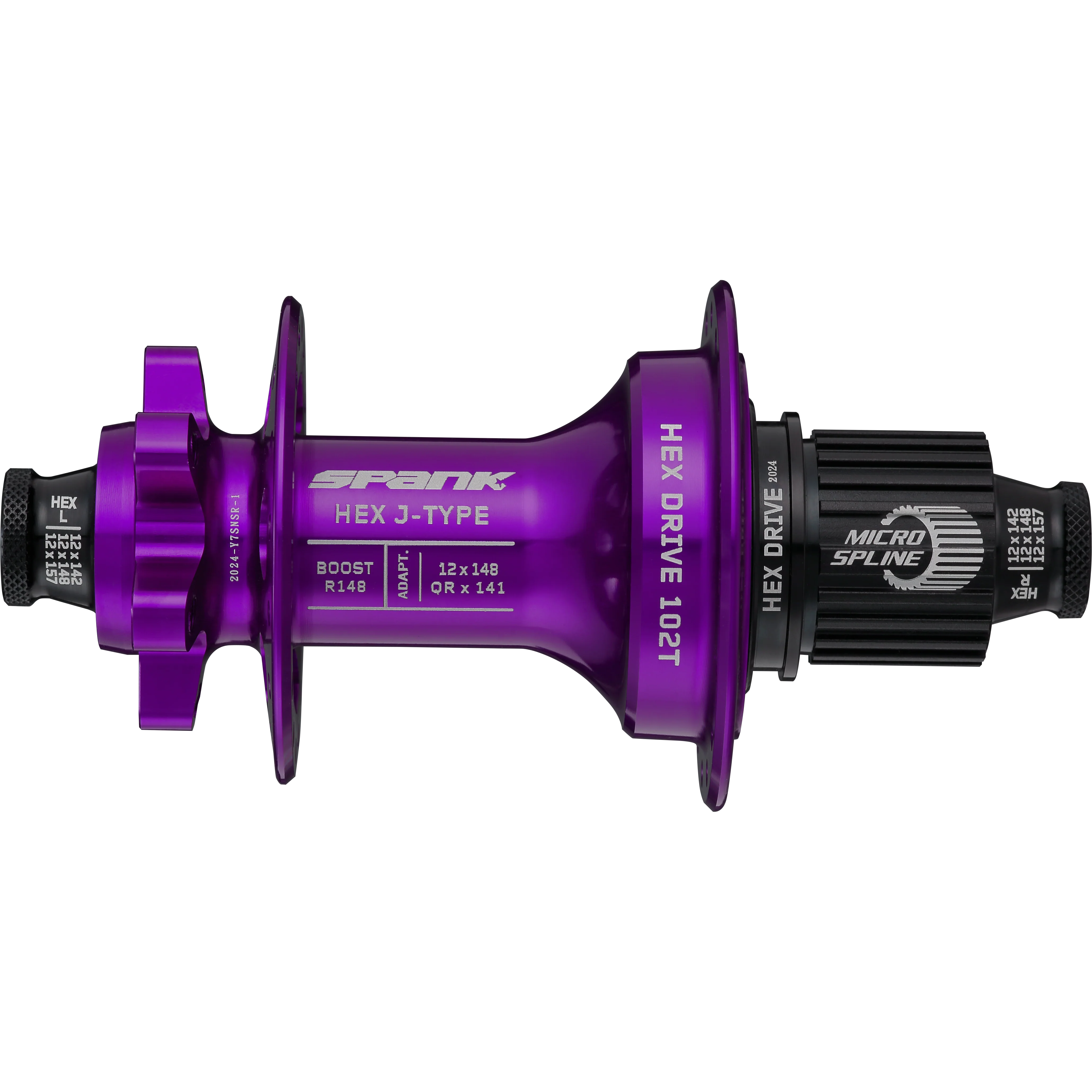

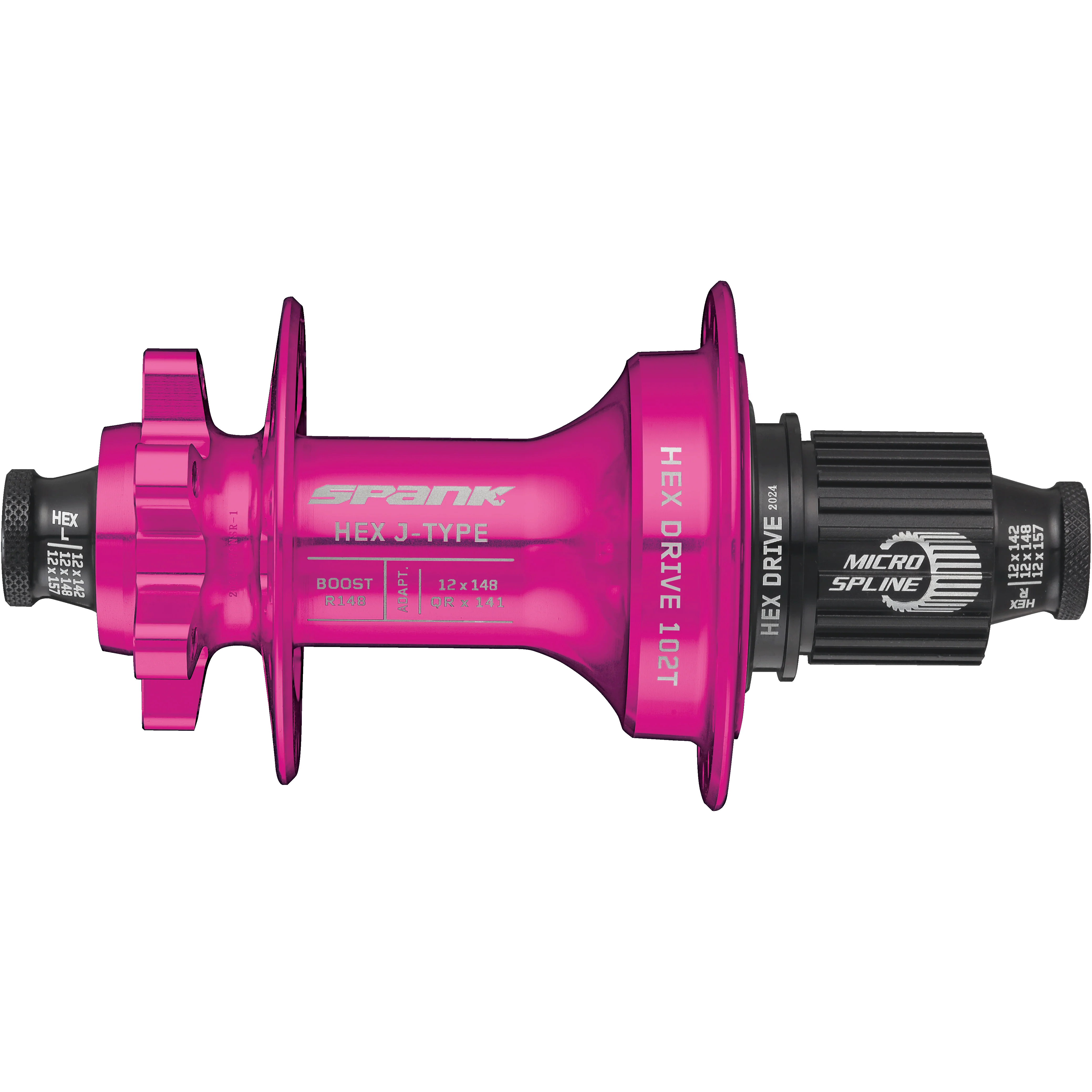

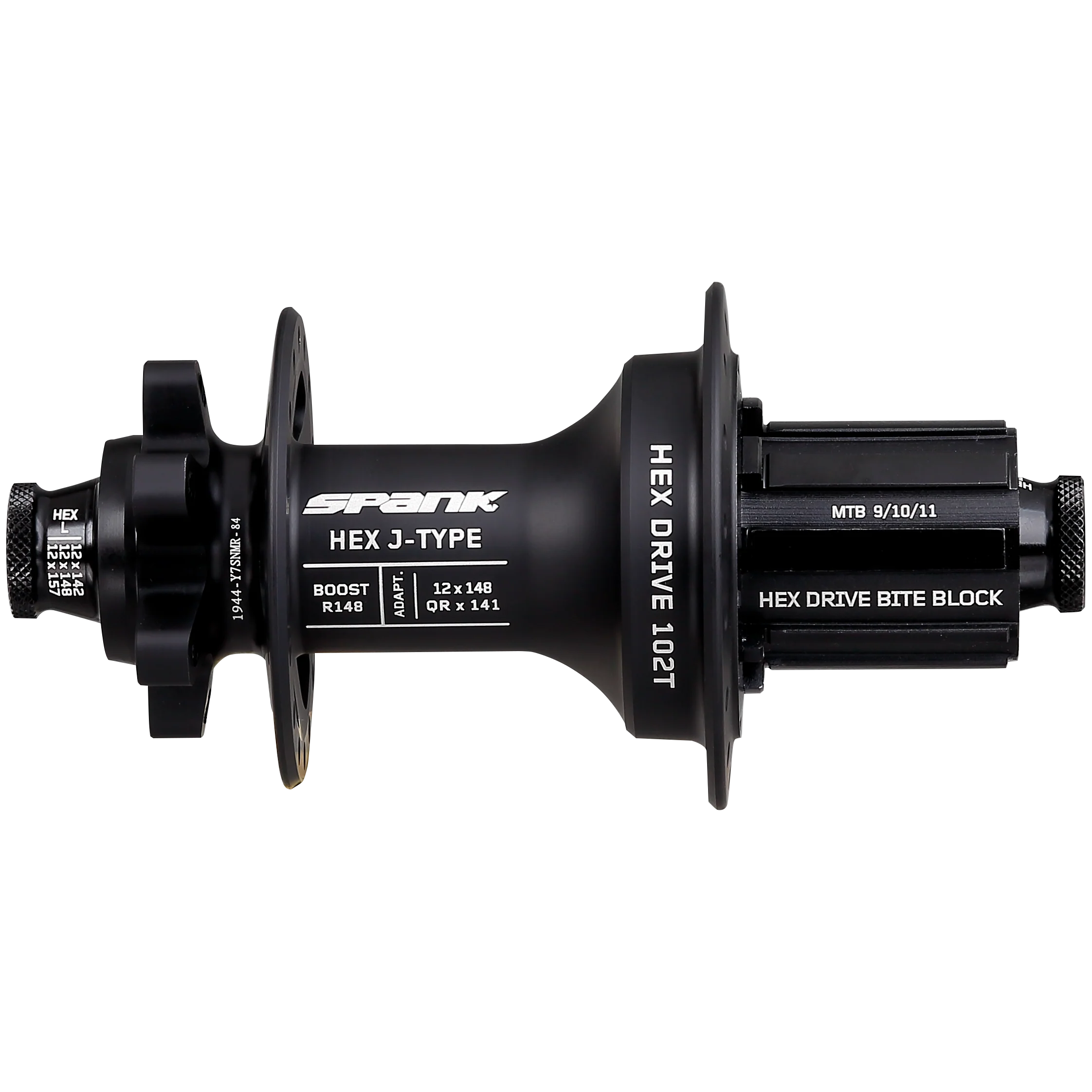

SPANK HEX J-Type Rear Hub

The New SPANK HEX DRIVE HUB, featuring:

102T, 6-Pawl 3.5 degree Engagement
Full Alloy body and axle
Bite Block Alloy freehubs
Advanced seal system

CLASSIFICATION & INTENDED USE

ALL MOUNTAIN	TRAIL	ENDURO	FREERIDE	DOWNHILL	GRAVEL	XC
✔	✔	✔	✔	✔

SPANK’s HEX DRIVE 102T technology delivers 3.5° engagement, for almost instant pickup

6 independent pawls with 3 steps per pawl, work in unison, meaning 18 engagement points per click

Bite-Block Alloy HG and XD Freehub bodies resist damage from cassettes without the weight penalty of steel

Unique flange design reduces dish requirement and minimizes tension range between drive side and non-drive side spokes

Advanced seal system improves prevention of bearing/drive system contamination

SPECIFICATIONS

ENGAGEMENT:	HEX DRIVE 102T / 3.5° / 6 Pawl
HOLE COUNT:	32H J-Hook
DISC MOUNT:	6-bolt
MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy freehub body
FINISH:	Matte anodized, laser logos

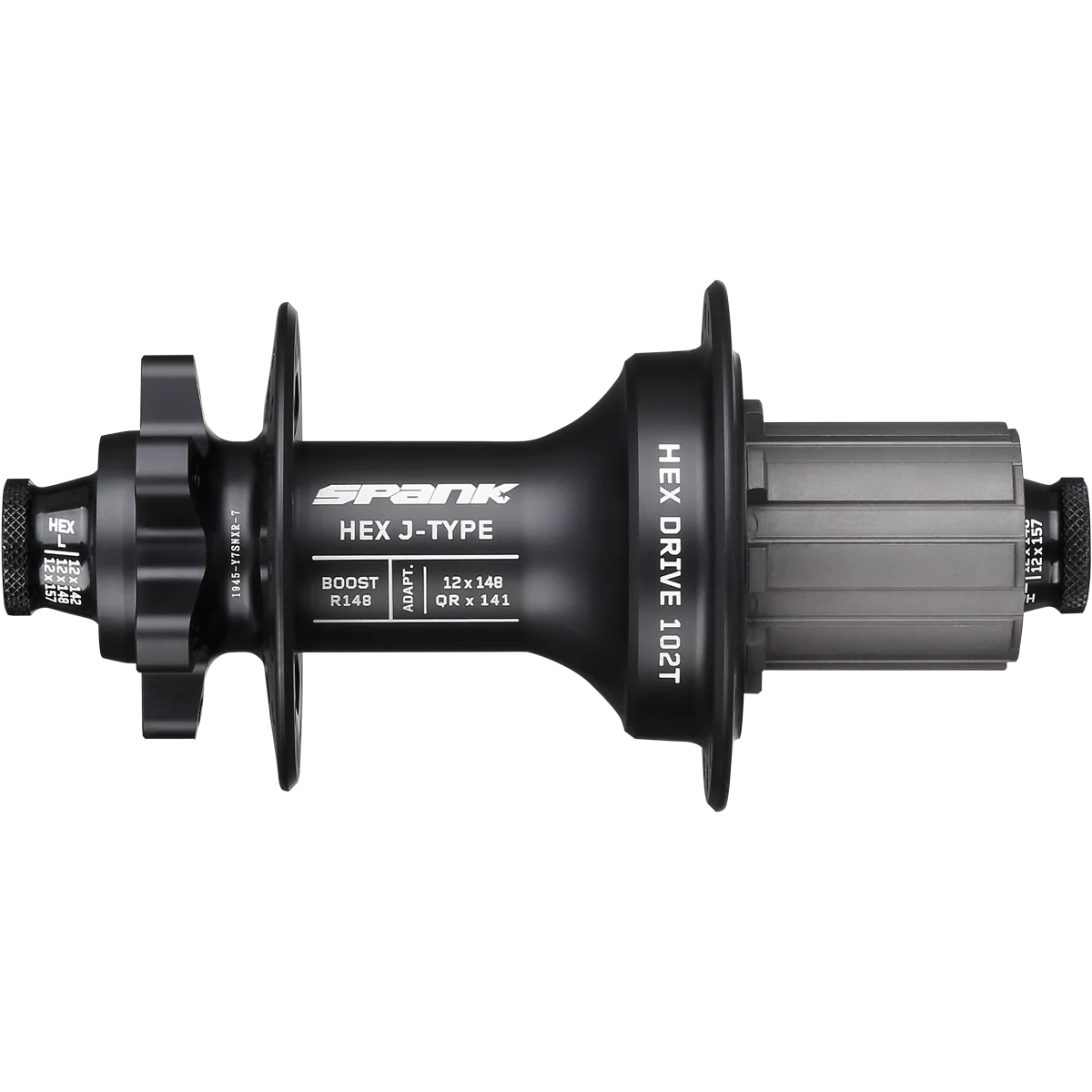

BOOST R148 HG

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body
CONFIGUARTION:	Boost 12x148mm, J-hook
FREEHUB:	Alloy HG
WEIGHT +/- (g):	318
ADAPTORS INCLUDED:	none
ADAPTORS AVAILABLE SEPARATELY:	Boost QRx141

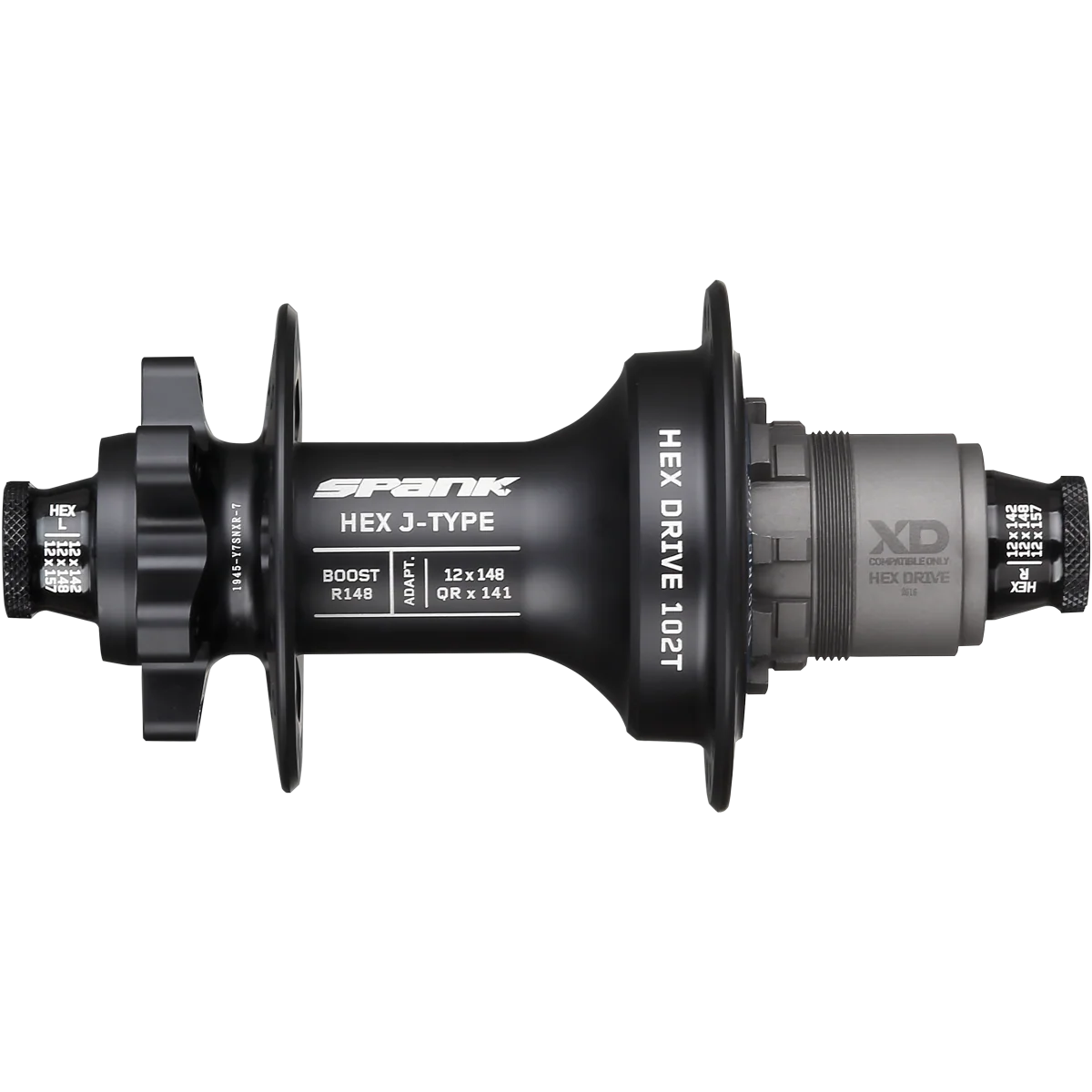

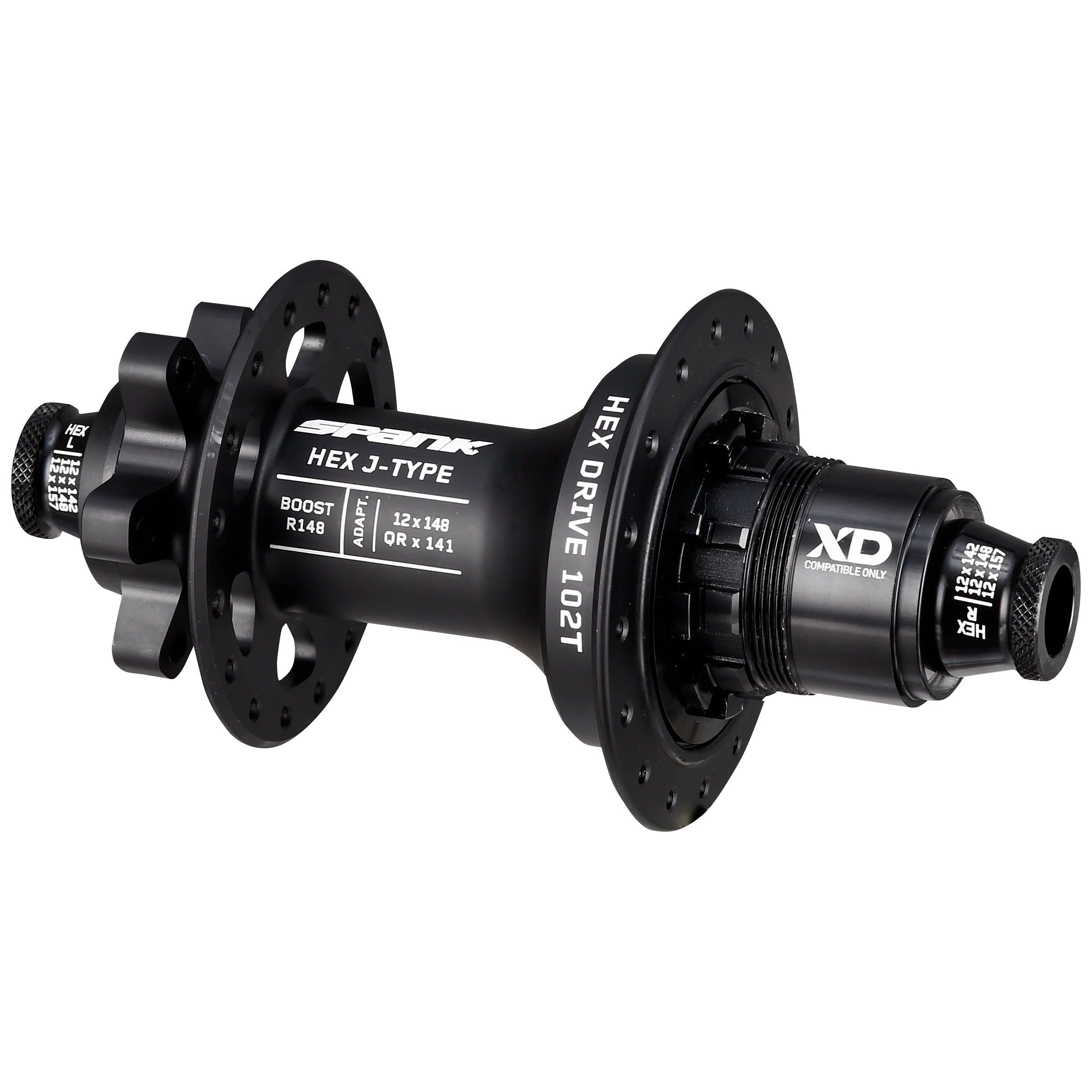

BOOST R148 XD

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy freehub body
CONFIGUARTION:	Boost 12x148mm, J-hook
FREEHUB:	Alloy XD
WEIGHT +/- (g):	310
ADAPTORS INCLUDED:	none
ADAPTORS AVAILABLE SEPARATELY:	Boost QRx141

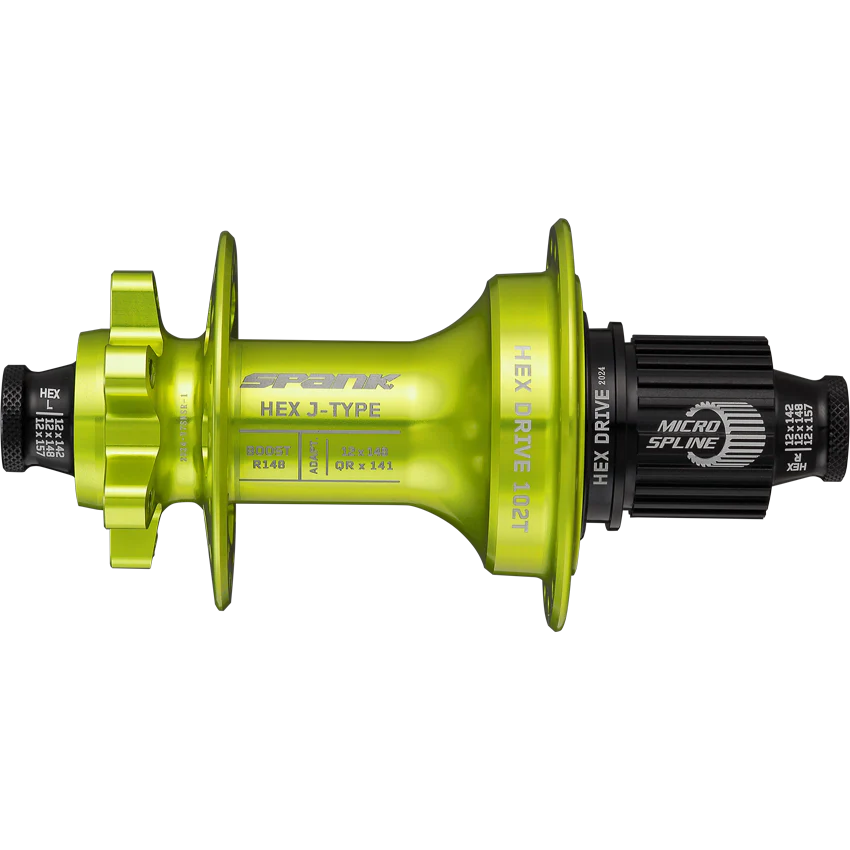

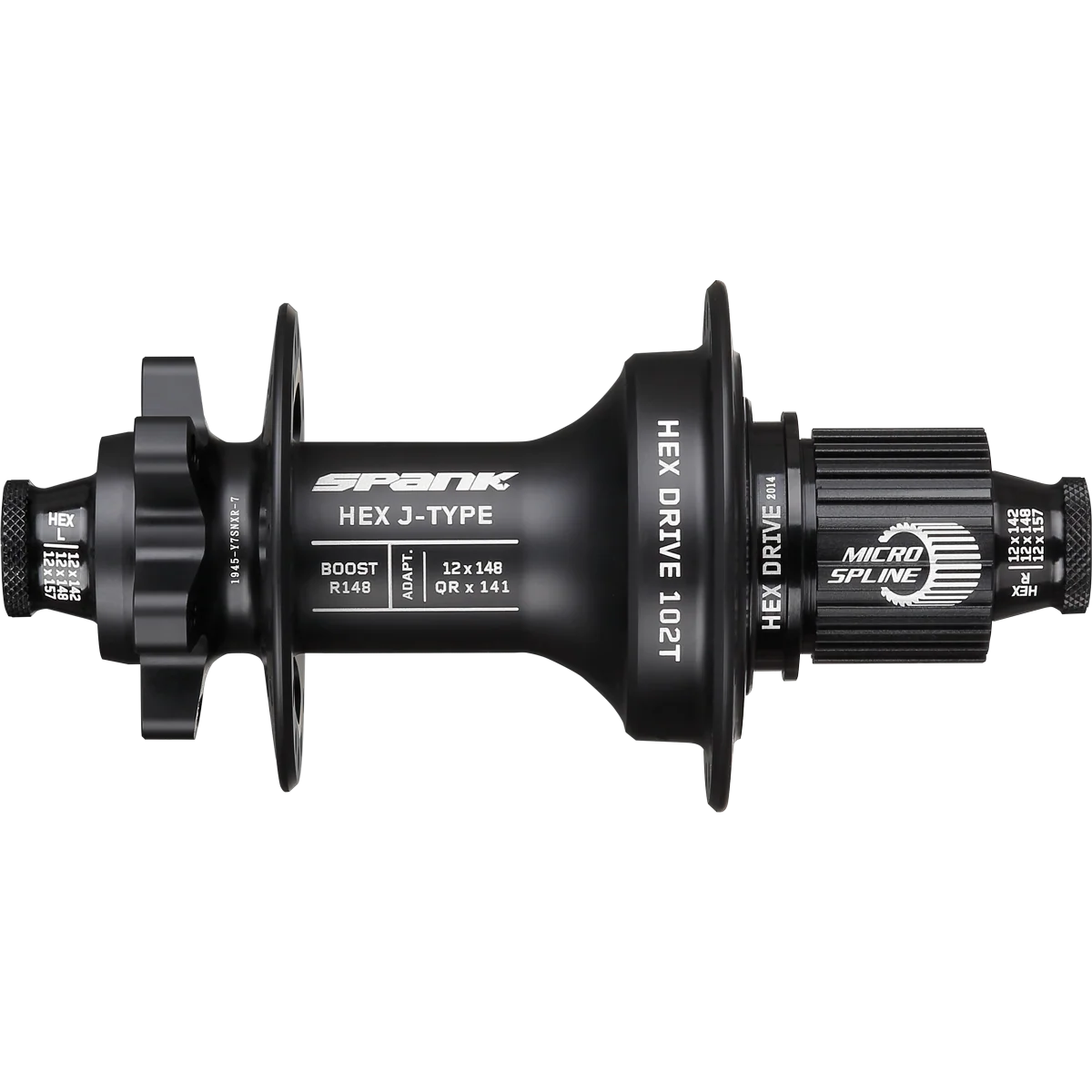

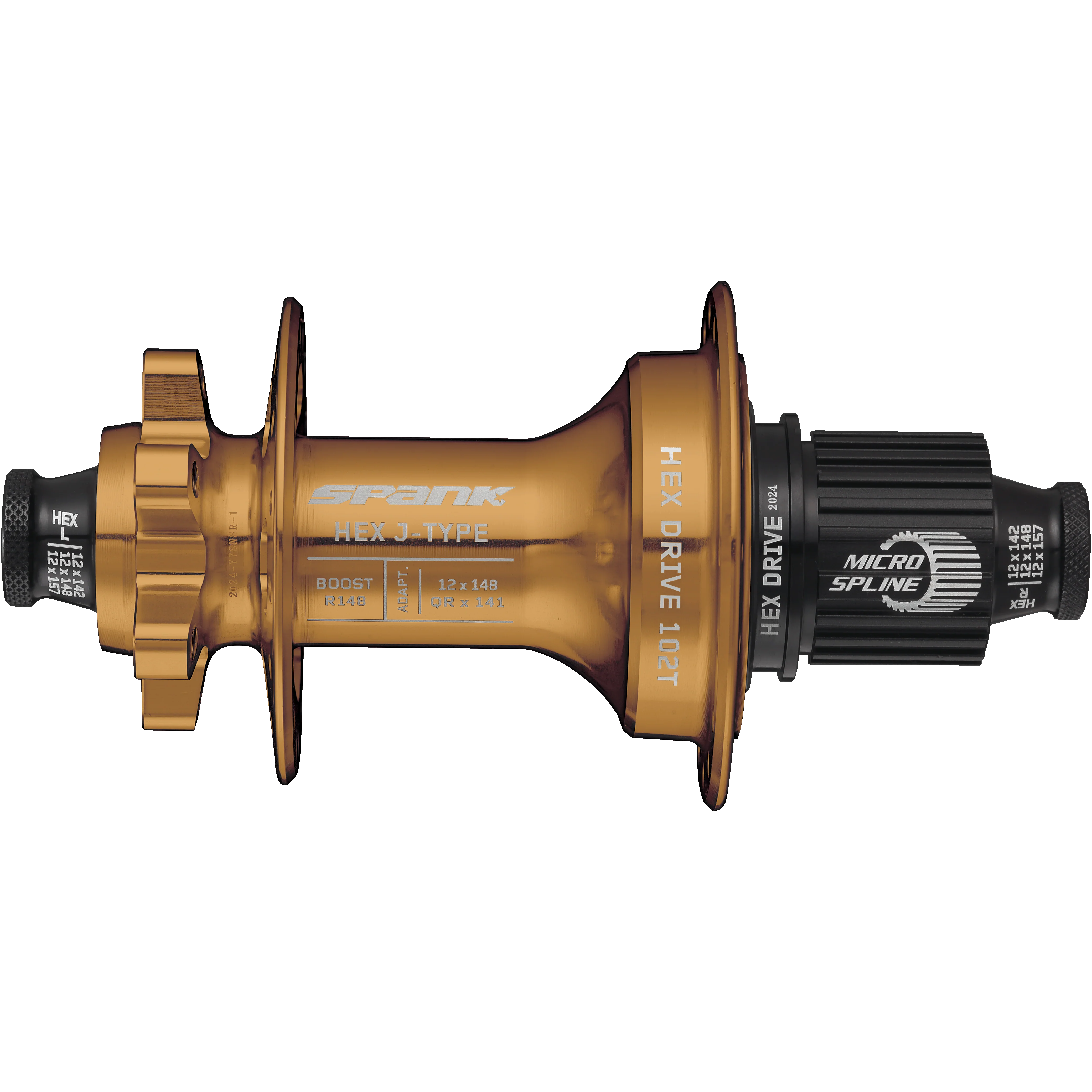

BOOST R148 MICROSPLINE

MATERIAL:	CNC optimized forged alloy hub body, alloy axle alloy freehub body
CONFIGUARTION:	Boost 12x148mm, J-hook
FREEHUB:	Alloy MICROSPLINE
WEIGHT +/- (g):	322
ADAPTORS INCLUDED:	none
ADAPTORS AVAILABLE SEPARATELY:	Boost QRx141

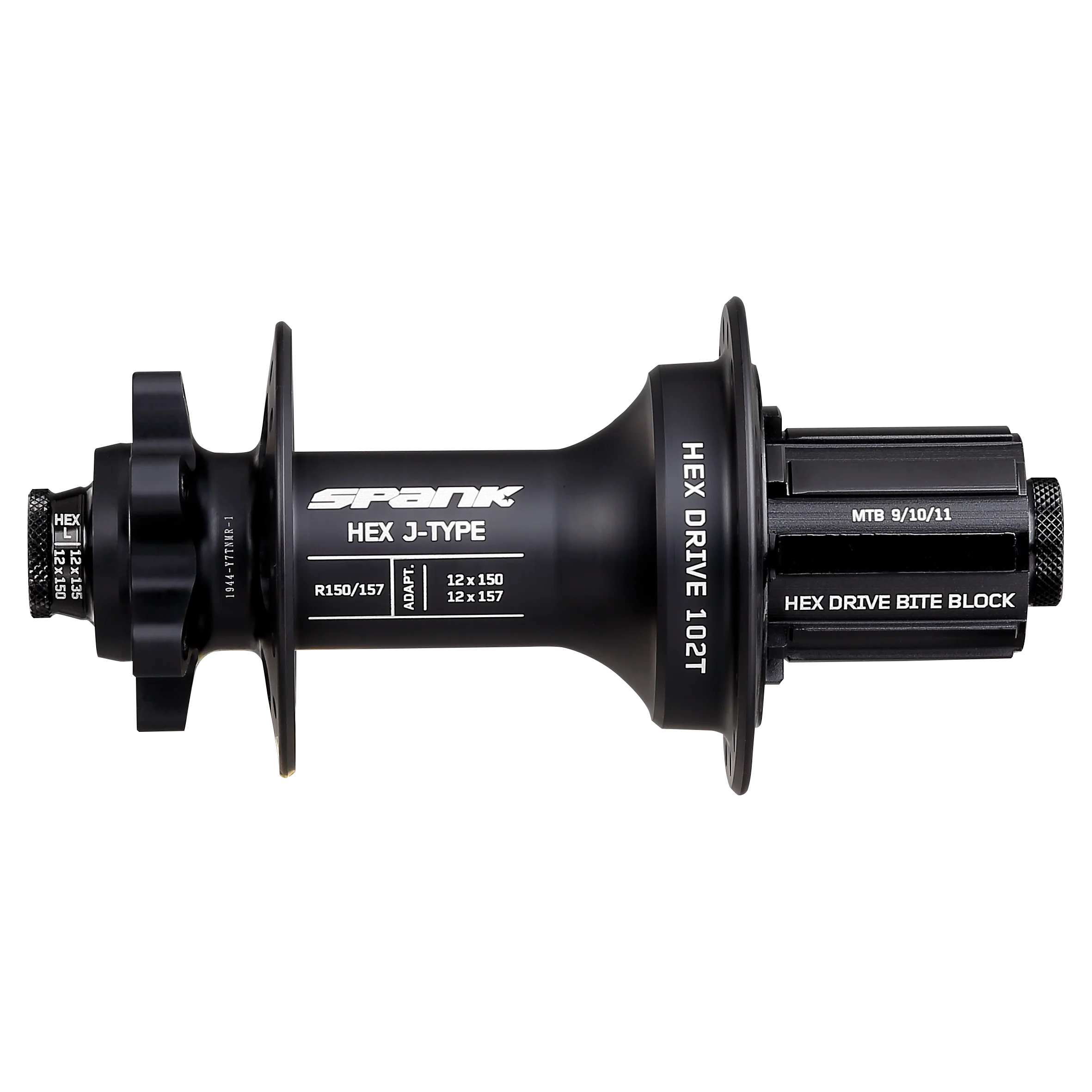

R150/157 HG

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body
CONFIGUARTION:	12x150mm, J-hook
FREEHUB:	Alloy HG
WEIGHT +/- (g):	323
ADAPTORS INCLUDED:	12X157
ADAPTORS AVAILABLE SEPARATELY:	none

R150/157 XD

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body
CONFIGUARTION:	12x150mm, J-hook
FREEHUB:	Alloy XD
WEIGHT +/- (g):	315
ADAPTORS INCLUDED:	12X157
ADAPTORS AVAILABLE SEPARATELY:	none

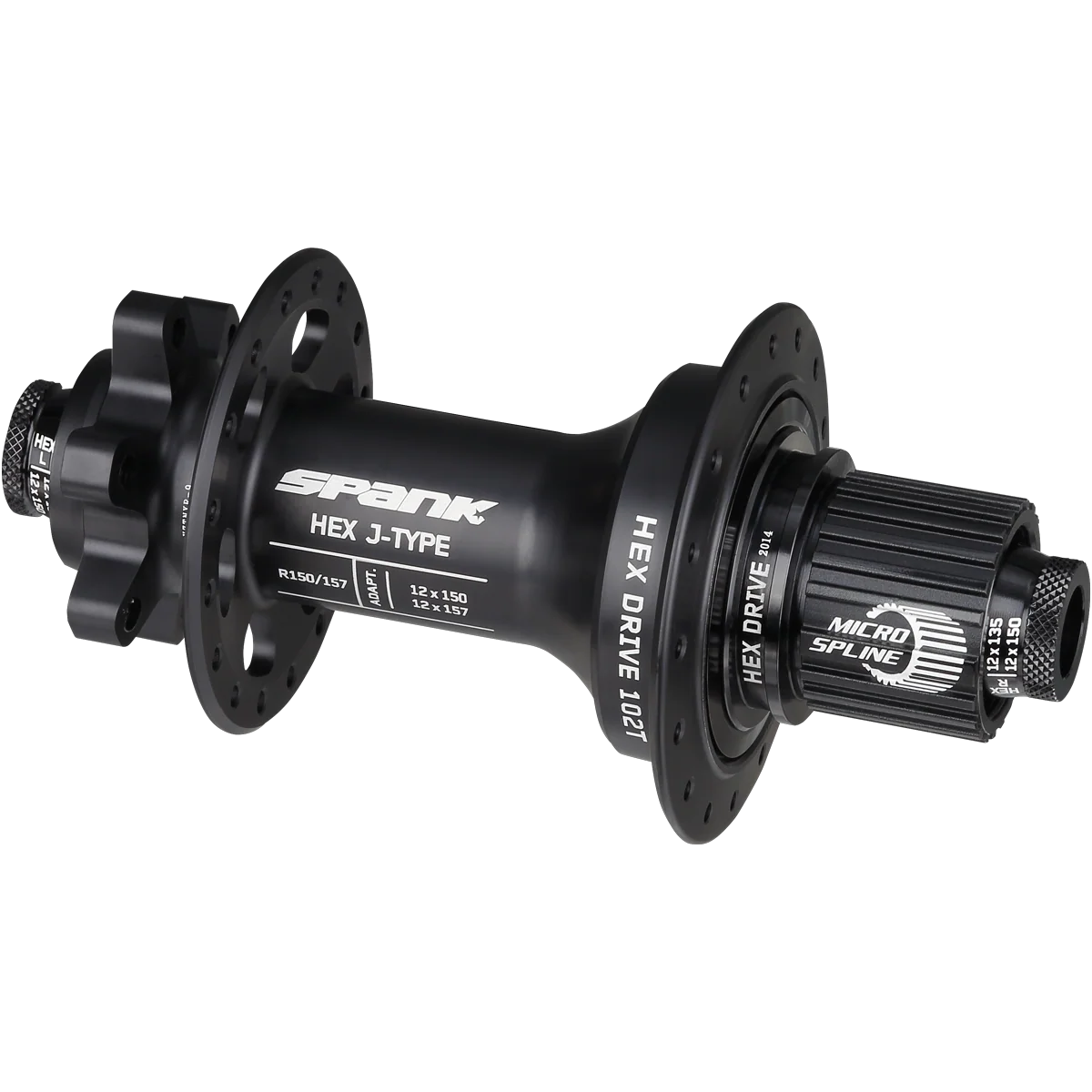

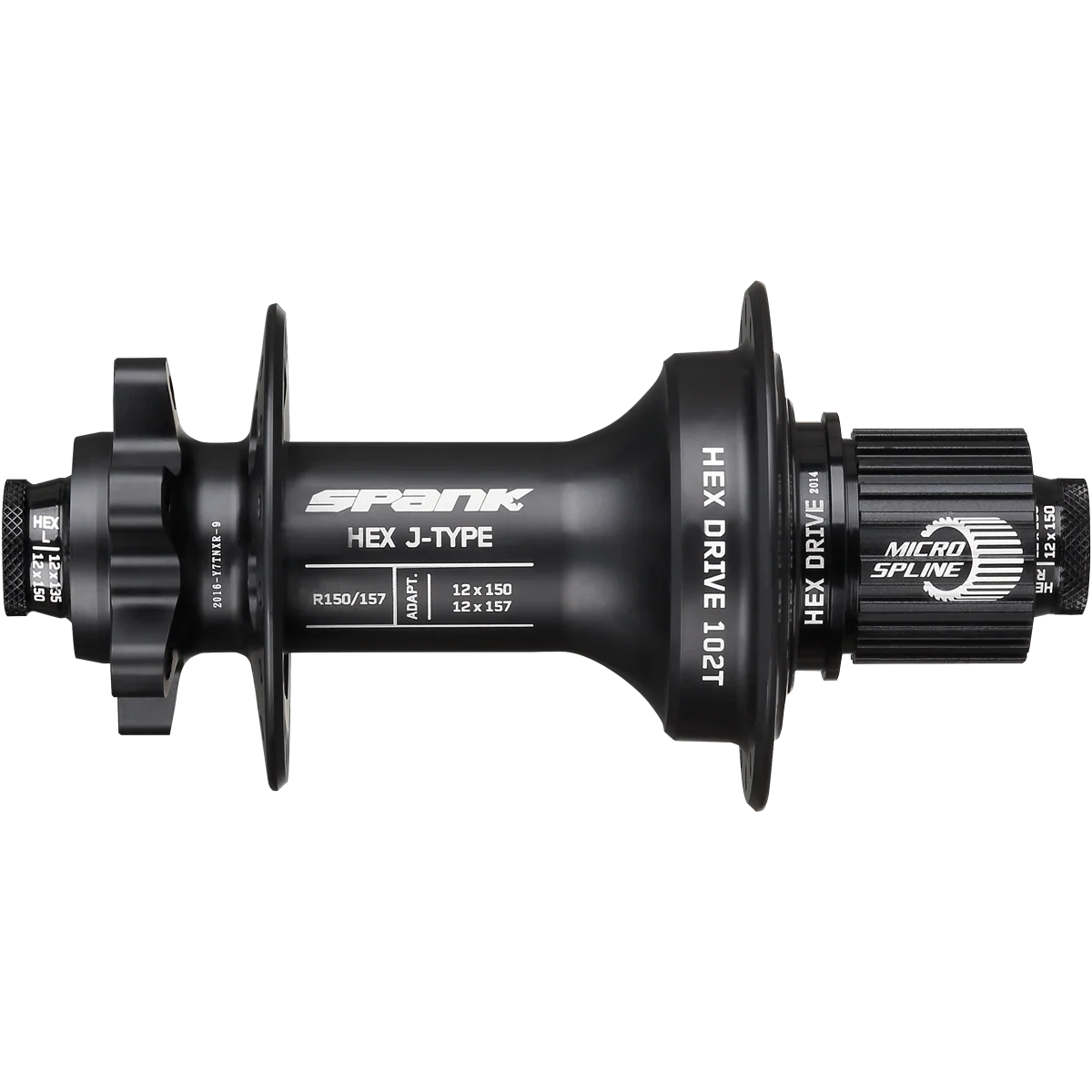

R150/157 MICROSPLINE

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy freehub body
CONFIGUARTION:	12x150mm, J-hook
FREEHUB:	Alloy MICROSPLINE
WEIGHT +/- (g):	327
ADAPTORS INCLUDED:	12X157
ADAPTORS AVAILABLE SEPARATELY:	none

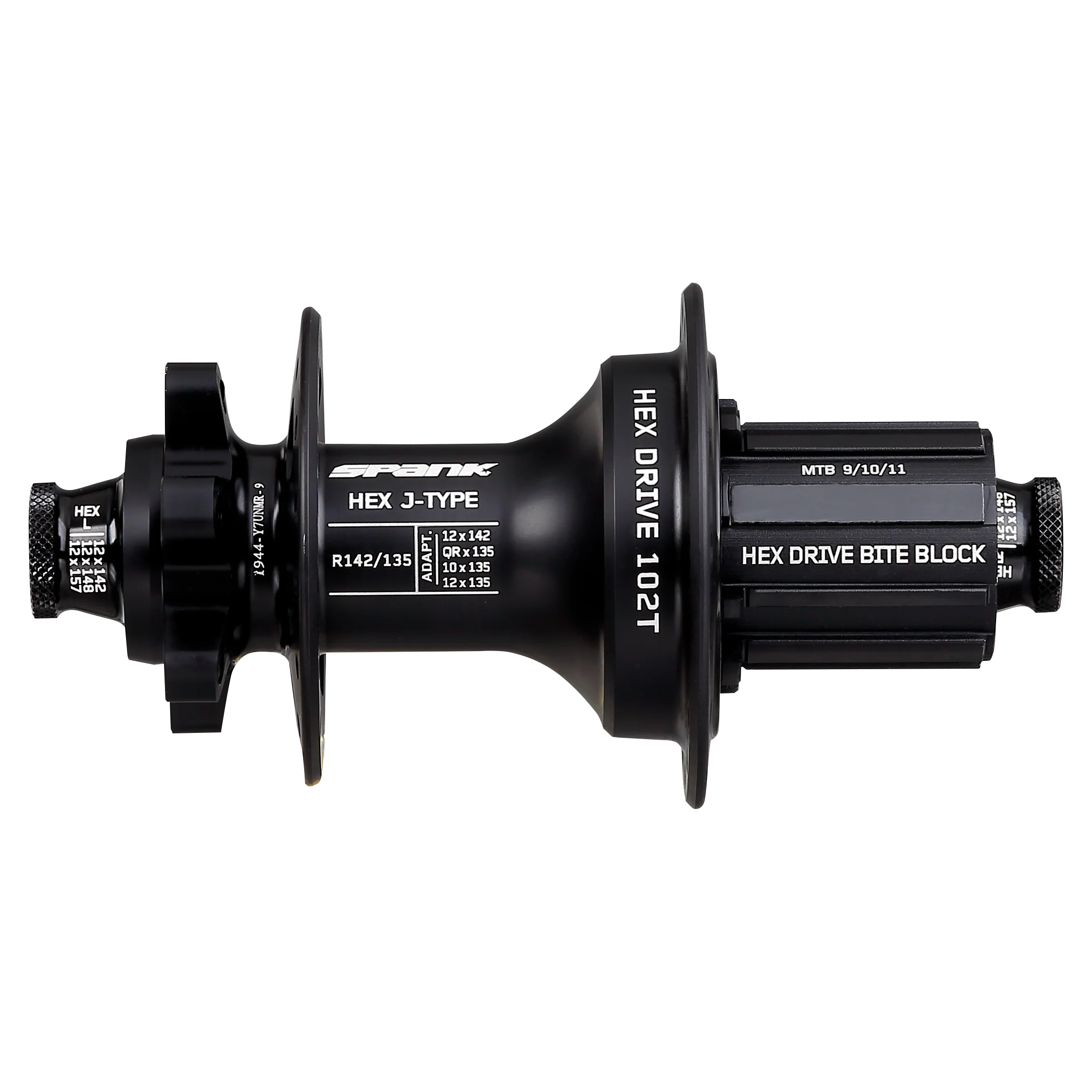

R135/142 HG

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body
CONFIGUARTION:	12x142mm, J-hook
FREEHUB:	Alloy HG
WEIGHT +/- (g):	314
ADAPTORS INCLUDED:	12X135
ADAPTORS AVAILABLE SEPARATELY:	QRX135, 10X135

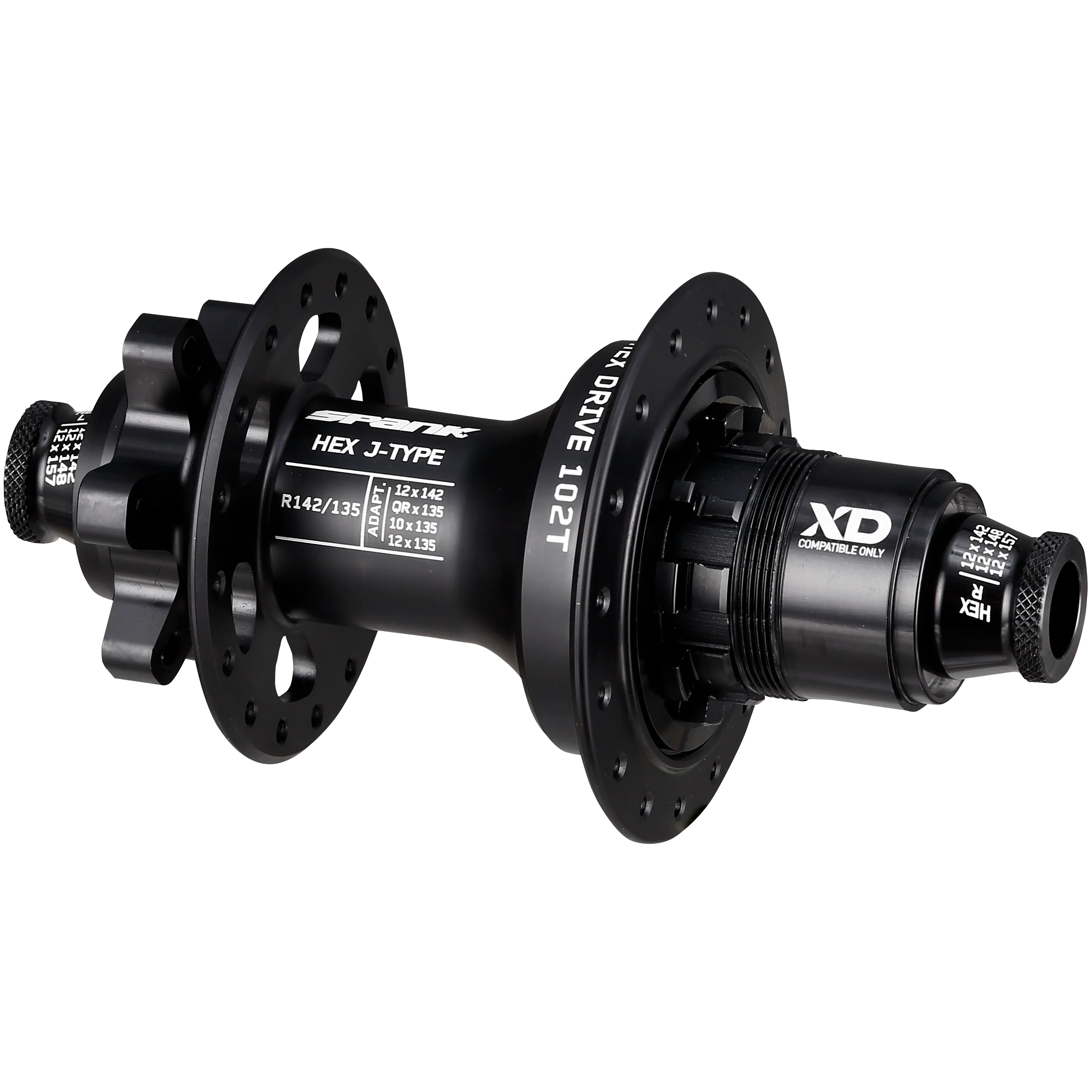

R135/142 XD

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, alloy "Bite Block" freehub body
CONFIGUARTION:	12x142mm, J-hook
FREEHUB:	Alloy XD
WEIGHT +/- (g):	309
ADAPTORS INCLUDED:	12X135
ADAPTORS AVAILABLE SEPARATELY:	QRX135, 10X135

HEX J-TYPE FOR E-BIKE:

To handle the extra torque experienced in electric assisted mountainbikes, HEX E-PLUS Rear Hubs are enhanced with a steel freehub body and high grade bearings.

EPAC Standard & E-bike Class 1 compatible.

Available in Boost 148 HG, XD & Microspline.

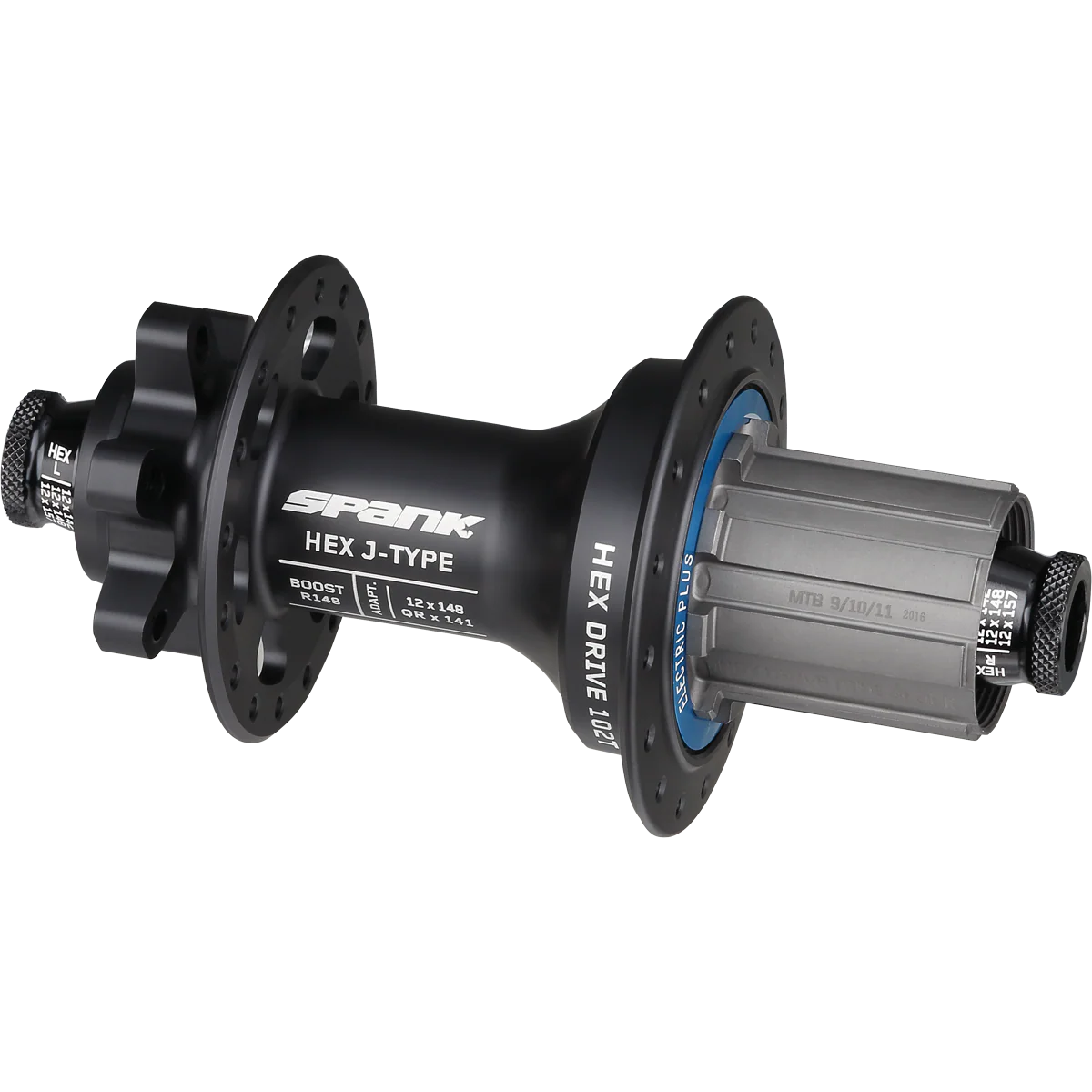

BOOST 148 HG E-PLUS

MATERIAL:	CNC optimized forged Alloy hub body, alloy axle, steel freehub body
CONFIGUARTION:	Boost 12x148mm, J-hook
FREEHUB:	Steel HG
WEIGHT +/- (g):	406.5
ADAPTORS INCLUDED:	none
ADAPTORS AVAILABLE SEPARATELY:	Boost QRx141

BOOST 148 XD E-PLUS

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, steel freehub body
CONFIGUARTION:	Boost 12x148mm, J-hook
FREEHUB:	Steel XD
WEIGHT +/- (g):	395
ADAPTORS INCLUDED:	none
ADAPTORS AVAILABLE SEPARATELY:	Boost QRx141

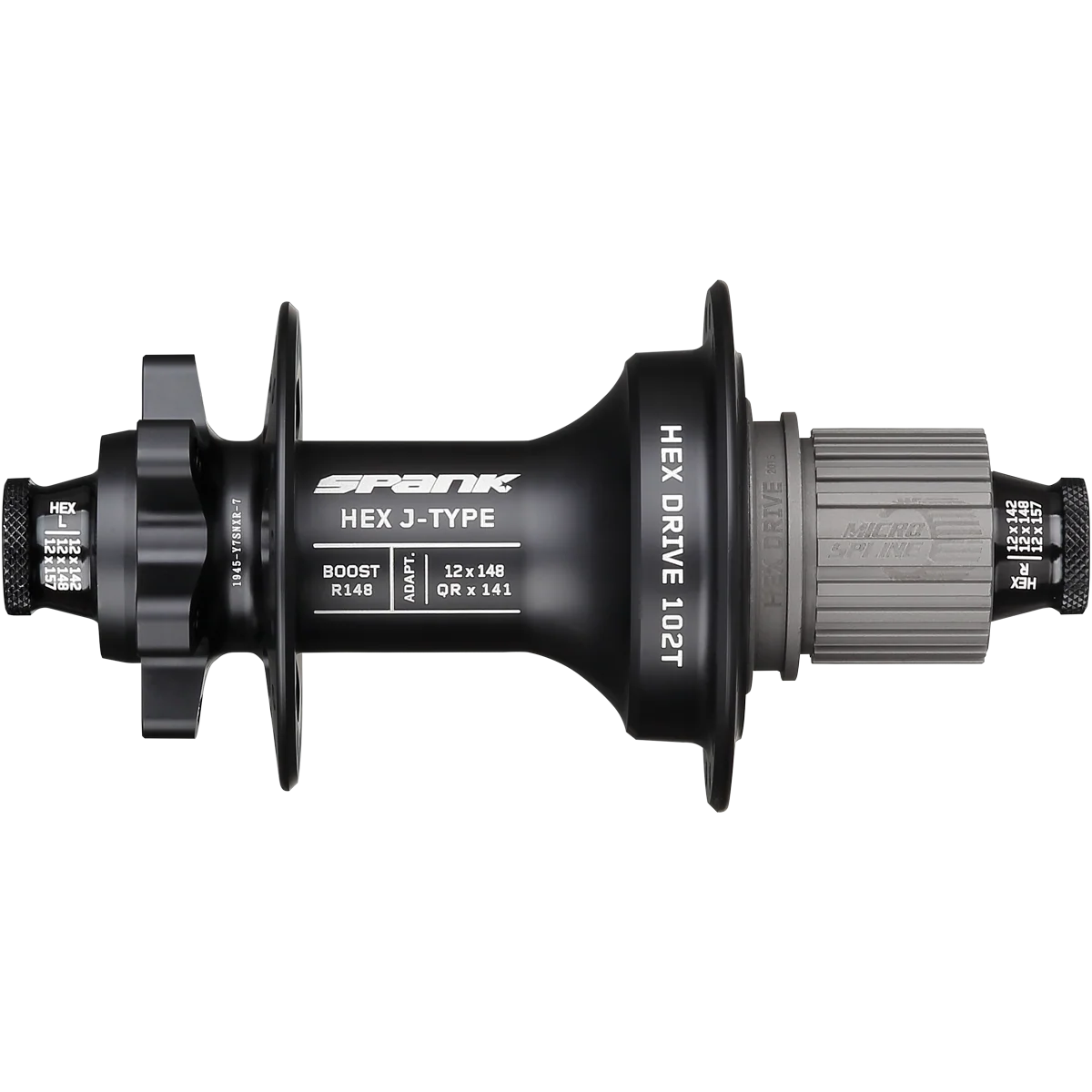

BOOST 148 MICROSPLINE E-PLUS

MATERIAL:	CNC optimized forged alloy hub body, alloy axle, steel freehub body
CONFIGUARTION:	Boost 12x148mm, J-hook
FREEHUB:	Steel MICROSPLINE
WEIGHT +/- (g):	380.5
ADAPTORS INCLUDED:	none
ADAPTORS AVAILABLE SEPARATELY:	Boost QRx141

Use the table below to determine compatible adapters & service parts, or visit the service parts collection by clicking here.

ADAPTERS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

Boost R148:	HEX Rear Hub QRx135/141 Adapter
R150/157:	N/A
R135/142:	HEX Rear Hub QRx135/141 Adapter
	HEX Rear Hub 10x135 Adapter

SERVICE KITS COMPATIBLE WITH SPANK HEX J-TYPE REAR HUBS

HEX Rear HG/HGR Hub Replacement Bearing Kit

HEX Rear XD/XDR Hub Replacement Bearing Kit

HEX Boost Rear Hub Alloy Axle Shaft

HEX Rear Hub 135/142mm Alloy Axle Shaft

HEX Rear Hub 150/157mm Alloy Axle Shaft

HEX Rear Hub HG Alloy Anti-Bite Freehub

HEX Rear Hub XD Alloy Freehub

HEX DRIVE HUB - WHEEL BUILDING RESOURCES:

SPANK IND - Spoke & Nipple Specifications for SPANK wheel builds

SPANK IND - StraightPull PCD & Offset info

SPANK IND - HEX DRIVE HUBS Dimensions
